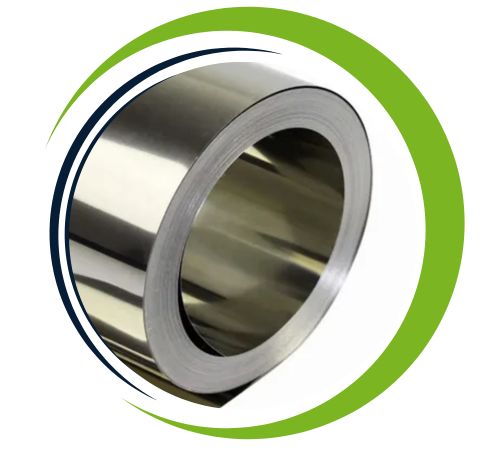

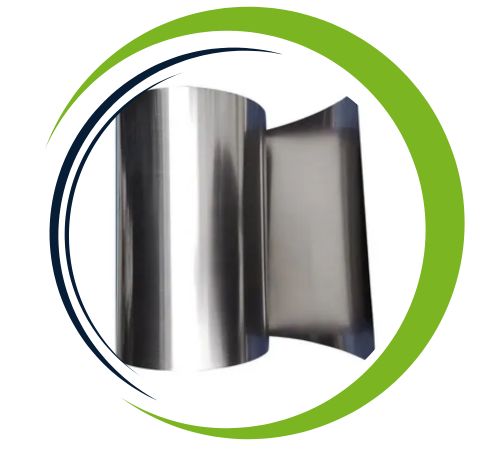

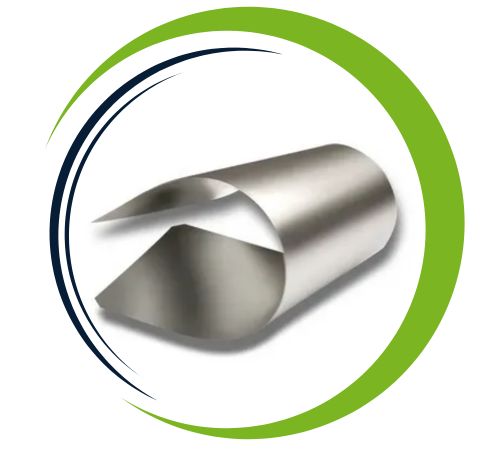

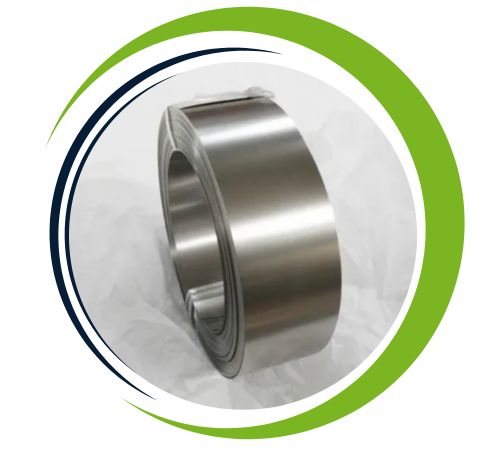

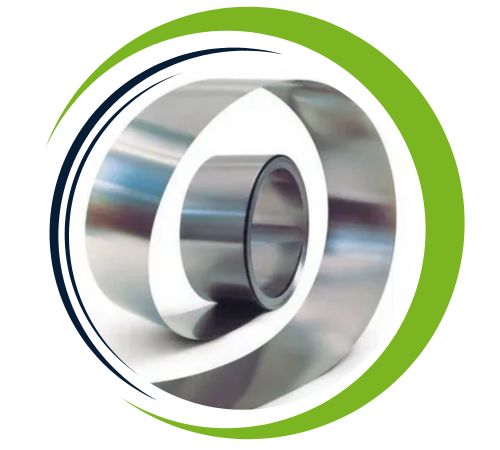

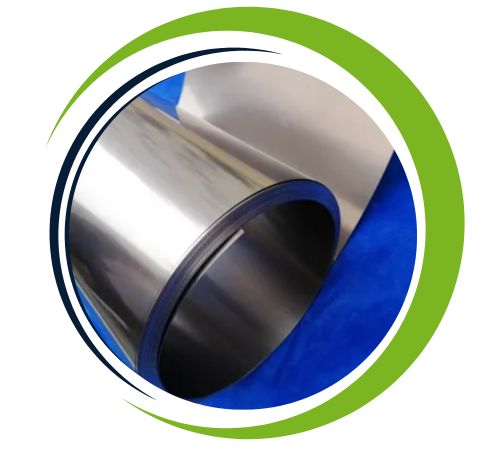

Josh Sheetsandplates, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in premium Titanium Grade 5 Foils that are built to excel in tough industrial settings. These foils are celebrated for their impressive strength-to-weight ratio, resistance to corrosion, and thermal stability. Crafted with precision and in line with international standards, Josh Sheetsandplates guarantees high-quality, dependable titanium products that cater to a variety of engineering needs. Their Titanium Grade 5 Foils are extensively utilized in the aerospace, chemical, medical, and marine sectors, offering remarkable durability, formability, and the ability to withstand extreme temperatures and harsh conditions.
Standards : ASTM B265 / ASME SB265
Width : 3.2mm – 1500mm
Form : Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7164 / 3.7165 | R56400 |
| Grade | C | Ti | O | Fe | Ai | V |
| Titanium Gr. 5 | 0.25 max | 90 min | 0.2 max | 0.25 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
The composition of Titanium Grade 5 Foils includes about 90% titanium, 6% aluminum, and 4% vanadium, creating a heat-treatable alpha-beta alloy. These foils boast high tensile and yield strength, exceptional fatigue resistance, and outstanding corrosion and oxidation resistance. They remain stable even at elevated temperatures and are known for their excellent weldability and formability. With a remarkable strength-to-weight ratio and superior thermal conductivity, Titanium Grade 5 Foils provide reliable performance and durability in environments that require lightweight, high-strength materials.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 Foils offer numerous advantages, including exceptional strength-to-weight ratio, making them ideal for lightweight yet durable applications. They exhibit outstanding corrosion resistance, even in harsh environments like seawater and chemicals, ensuring longevity and reliability. Additionally, Grade 5 titanium is highly biocompatible, making it perfect for medical implants and devices. The alloy also maintains high strength at elevated temperatures, offering excellent performance in aerospace and automotive sectors. Its fatigue resistance, low thermal expansion, and resistance to wear and stress make it a versatile and high-performing material for diverse industries.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Titanium Grade 5 Foils to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 Foils are commonly found in applications where strength, corrosion resistance, and lightweight characteristics are crucial. In the aerospace industry, they are used for aircraft components, engine parts, and exhaust systems. The chemical and petrochemical industries rely on them for heat exchangers, reactors, and processing equipment due to their ability to resist acids and chlorides. In the medical field, they are favored for surgical instruments and implants because of their biocompatibility. Moreover, they are also utilized in marine environments, power generation systems, and high-performance automotive components, ensuring longevity and efficiency even in extreme operating conditions.
