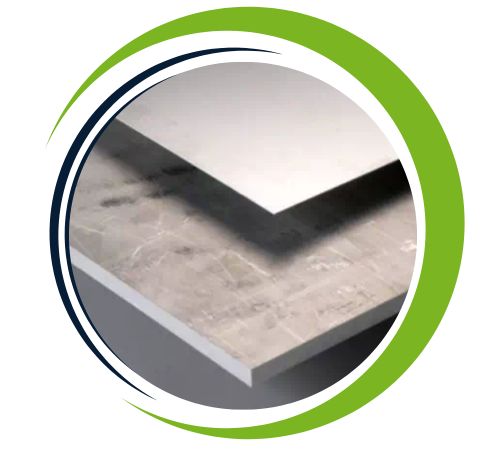

Smith Fittings, a reputable manufacturer and supplier located in Canberra, Australia, specializes in top-notch **Hastelloy C22 Sheet and Plates**. These materials are celebrated for their outstanding corrosion resistance, impressive strength, and durability, even in the harshest environments. Crafted to perform reliably in both oxidizing and reducing chemical conditions, these sheets and plates promise long-lasting performance in extreme industrial and marine settings. Smith Fittings is committed to precision manufacturing, ensuring a superior surface finish and strict compliance with international quality standards. With a solid reputation for providing high-performance materials, Hastelloy C22 Sheet and Plates are perfect for critical engineering, chemical processing, and high-temperature applications that demand exceptional structural integrity and corrosion resistance.
**Hastelloy C22 Sheet and Plates** are nickel-based alloys made up of **Nickel (56–63%)**, **Chromium (20–22%)**, and **Molybdenum (12–14.5%)**, along with trace amounts of **Tungsten, Iron, and Cobalt**. They boast remarkable resistance to pitting, crevice corrosion, and both oxidizing and reducing environments. The material features a **tensile strength of 485–690 MPa**, a **yield strength of 275–345 MPa**, and good elongation, which together provide excellent toughness, ductility, and thermal stability for use in highly corrosive and demanding industrial applications.
| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | ASME SB575, ASTM B575 UNS N06022, AMS, MSRR, BS |
| ASTM B575 Alloy C22 Plate Length | 0-12mm or as required |
| Specification of Plate | ASTM B575 UNS N06022, ASME SB575, MSRR, BS, AMS 4544 sheet |
| UNS N06022 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |
| Alloy C22Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C22 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C22 sheets and plates offer outstanding advantages, making them ideal for use in harsh environments. They provide excellent resistance to both oxidizing and reducing agents, ensuring protection against pitting, crevice corrosion, and stress corrosion cracking. Their versatility allows them to perform reliably in aggressive chemical processes, including acidic and chlorinated environments. With high mechanical strength and exceptional durability, they are suitable for high-temperature applications. Additionally, Hastelloy C22 sheets and plates exhibit excellent weldability, ease of fabrication, and long service life, reducing maintenance and enhancing efficiency in demanding industrial operations.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
**Hastelloy C22 Sheet and Plates** find their place in various industries that require exceptional corrosion resistance and mechanical reliability. Typical applications include **chemical processing equipment, reactor vessels, heat exchangers, flue gas scrubbers, marine components, and pollution control systems**. They are also utilized in the **aerospace, petrochemical, and pharmaceutical sectors**, where structural components must withstand harsh chemicals and high temperatures. Thanks to their excellent formability, weldability, and durability, Hastelloy C22 Sheet and Plates from Smith Fittings are ideal for fabricating critical components, structural parts, and high-performance assemblies.
