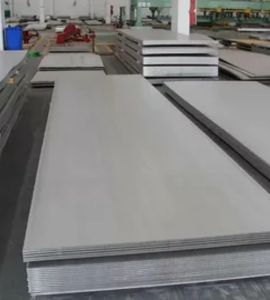

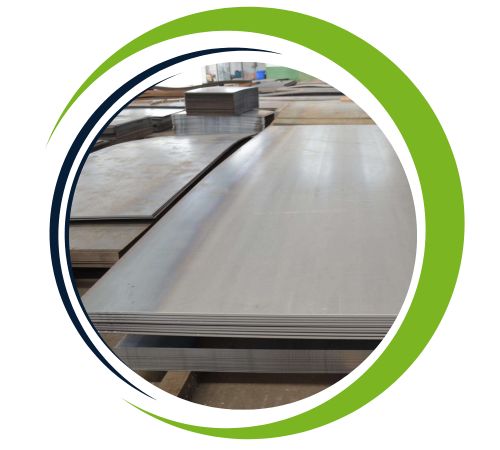

Smith Fittings, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Stainless Steel 304 Sheets and Plates**. These products are celebrated for their remarkable corrosion resistance, impressive strength, and versatility. Crafted from austenitic stainless steel, they offer exceptional protection against oxidation, chemical damage, and general corrosion across a variety of environments. At Smith Fittings, precision manufacturing and rigorous quality control are priorities, ensuring that their 304 sheets and plates comply with international standards. Perfect for industrial, chemical, and architectural uses, these materials promise durability, structural integrity, and reliability, making them ideal for fabrication, high-performance engineering, and challenging operational settings.
**Stainless Steel 304 Sheets and Plates** are composed of chromium (18–20%) and nickel (8–10.5%), which contribute to their outstanding corrosion resistance, mechanical strength, and ductility. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1400–1450°C, these sheets and plates exhibit excellent toughness, weldability, and formability, ensuring dependable performance in structural, industrial, and mildly corrosive conditions.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

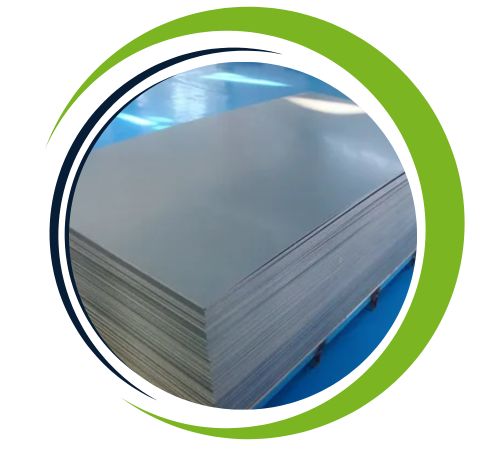

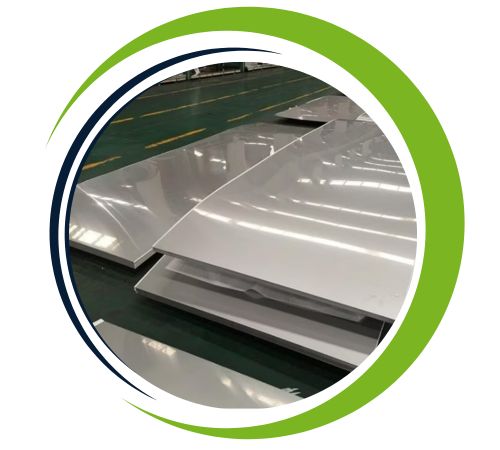

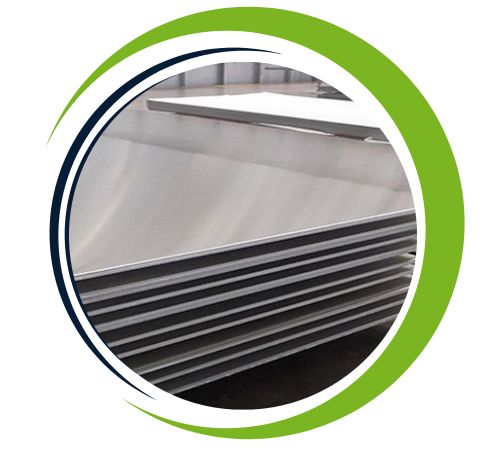

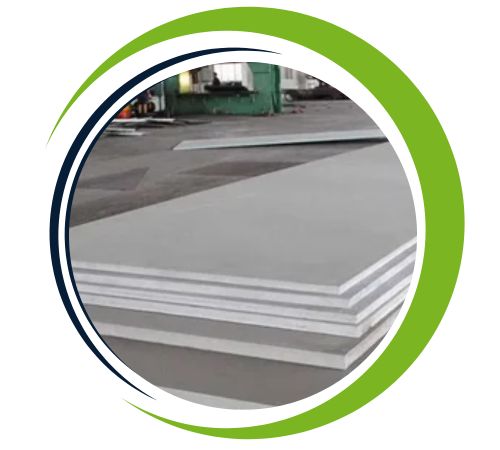

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

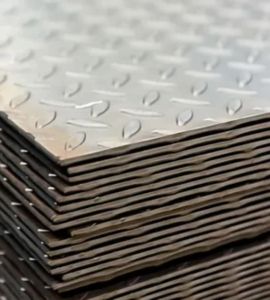

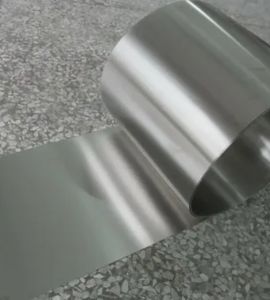

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |

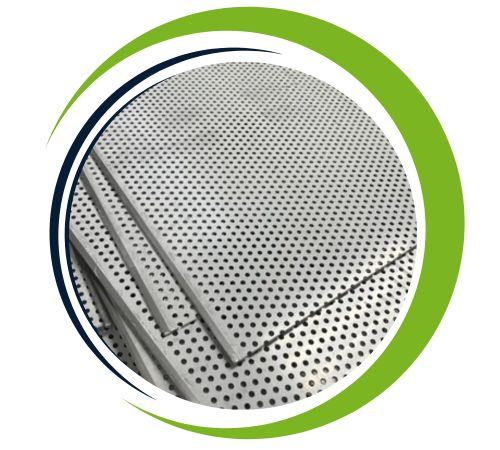

| Hole Dia mm | Hole Centres mm | O/A | Finish | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 304 sheets and plates offer unique advantages, including excellent resistance to corrosion and oxidation, ensuring durability in harsh environments They have high tensile strength, ductility and weldability, and enabling versatility for a variety of requirements. These sheets and plates withstand extreme temperatures, making them suitable for both cryogenic and high temperature applications. Their smooth surfaces are easy to clean and easy to use, ideal for the food processing and pharmaceutical industries. Furthermore, their aesthetic appeal, low maintenance and recyclability make them a cost-effective, non-environmentally friendly choice for construction, automotive and ready-to-use will be used.
**Stainless Steel 304 Sheets and Plates** find extensive use in applications that demand corrosion resistance, high strength, and structural reliability. They are particularly suited for chemical processing units, heat exchangers, food and pharmaceutical processing equipment, architectural frameworks, and industrial machinery. Moreover, they are utilized in power generation, marine, and offshore structures where durability, mechanical stability, and resistance to oxidizing environments are crucial. Their exceptional performance makes them a go-to choice for fabrication, industrial, and high-performance engineering applications across various industries.
