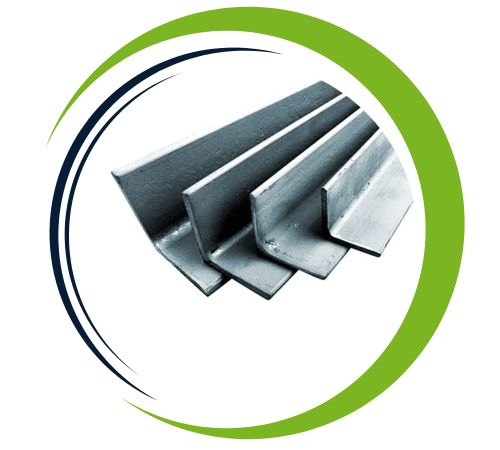

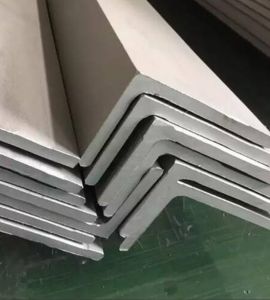

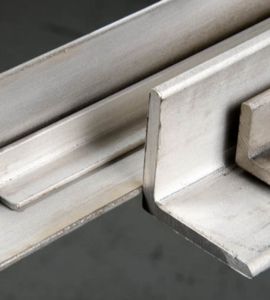

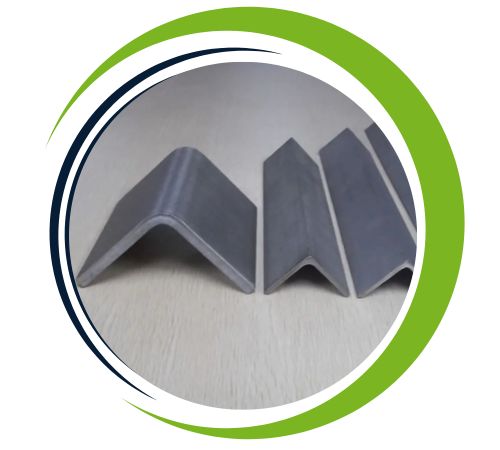

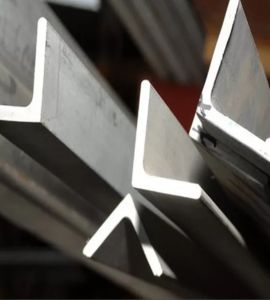

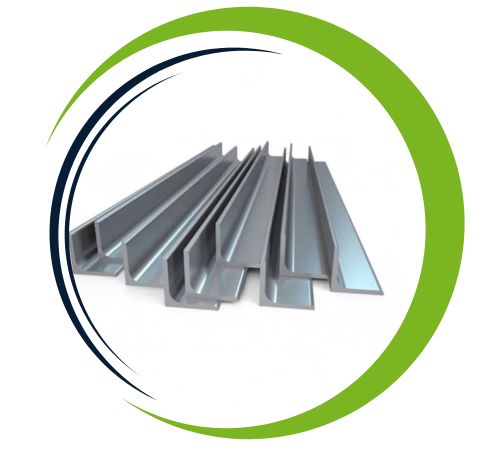

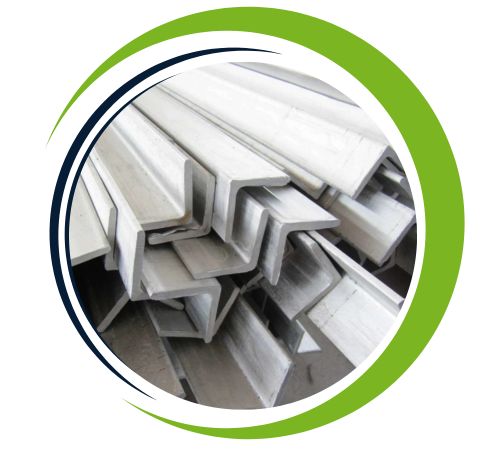

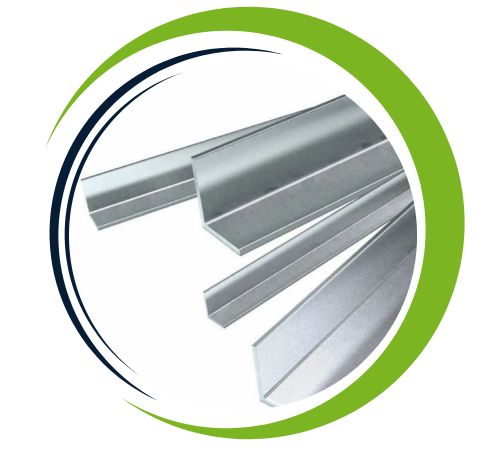

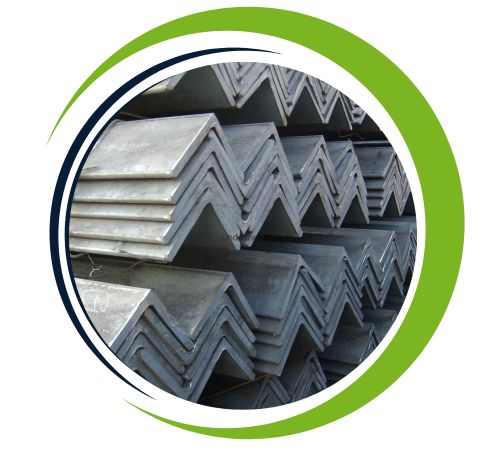

Based in Canberra, Australia, Smith Fittings stands out as a top manufacturer and supplier of high-quality stainless steel products, particularly their Stainless Steel 347 Angles. Renowned for their precision engineering and remarkable durability, Smith Fittings delivers angles that adhere to stringent industrial standards, ensuring reliable performance even in the toughest conditions. These Stainless Steel 347 Angles are designed to offer superior resistance to corrosion, excellent stability at high temperatures, and impressive long-term strength. They’re perfect for both industrial and architectural uses, blending precise dimensions with strong mechanical properties. Smith Fittings is committed to providing clients with top-notch stainless steel solutions tailored to meet the needs of structural, commercial, and industrial projects.
The composition of Stainless Steel 347 Angles primarily includes iron, along with 17–19% chromium, 9–13% nickel, and trace amounts of niobium, titanium, and other alloying elements. This unique blend enhances their resistance to intergranular corrosion and ensures outstanding stability at high temperatures. Typically, these angles boast a tensile strength ranging from 620 to 750 MPa, a yield strength of 275 to 310 MPa, and an elongation of 30 to 40%, which guarantees their durability and mechanical reliability. Stainless Steel 347 Angles maintain their dimensional stability and structural integrity even when exposed to elevated temperatures, making them ideal for industrial, chemical, and power-generation applications where toughness and corrosion resistance are essential.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 347 |
|---|---|
| C | 0.08 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 17 – 20 |
| Cb | 10xC – 1.10 |
| Ni | 9.0 – 13.0 |
| Fe | 62.74 min |
| Grade | SS 347 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 347 |
| WERKSTOFF NR. | 1.4550 |
| UNS | S34700 |
| JIS | SUS 347 |
| BS | – |
| GOST | 08Ch18N12B |
| AFNOR | – |
| EN | X6CrNiNb18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347 Angle for excellent corrosion resistance, especially in hot environments and harsh chemicals. Stabilization is made of columbium and tantalum, preventing carbide precipitation and ensuring high intergranular corrosion resistance. This makes it ideal for high-stress applications in the aerospace, petrochemical, and power plant industries. It has good weldability, formability and high heat resistance. Stainless steel 347 provides durability and performance under extreme conditions, making it a reliable choice for construction and industrial applications requiring high corrosion and temperature resistance.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
These angles are widely utilized in industries that demand strength, durability, and resistance to high-temperature corrosion. Common applications include structural frameworks, pressure vessels, heat exchangers, boiler components, and chemical processing equipment. Additionally, they find use in automotive, aerospace, and marine sectors due to their toughness and reliability under thermal stress. They’re also suitable for architectural and construction projects, showcasing their versatility and dependability.
