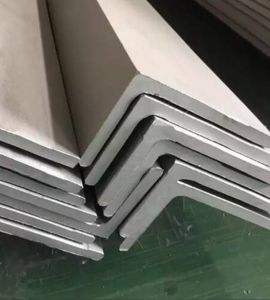

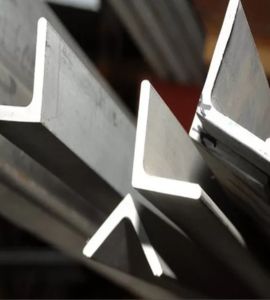

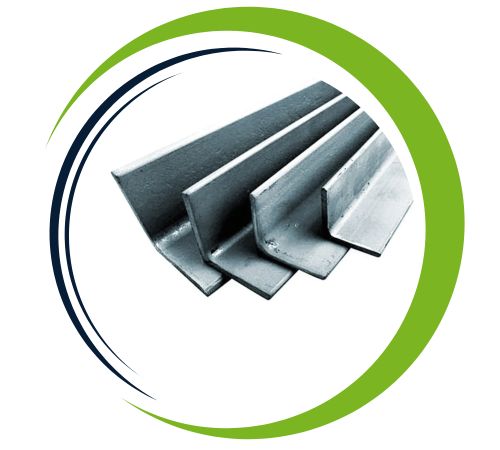

Based in Canberra, Australia, Smith Fittings stands out as a top manufacturer and supplier of high-quality stainless steel products, particularly their Stainless Steel 321H Angles. Renowned for their precision engineering and exceptional durability, these angles are designed to provide outstanding corrosion resistance, high-temperature strength, and long-lasting performance. Crafted to meet stringent industrial standards, Stainless Steel 321H Angles are perfect for structural, industrial, and commercial applications where reliability and thermal stability are crucial. With their exact dimensions and strong mechanical properties, these angles guarantee dependable performance even in the toughest environments. Smith Fittings is committed to delivering premium stainless steel solutions tailored to the unique needs of clients across various industries.
The Stainless Steel 321H Angle is primarily made of iron, containing 17–19% chromium, 9–13% nickel, along with small amounts of titanium, manganese, and other alloying elements. This specific composition offers remarkable resistance to intergranular corrosion, excellent oxidation resistance, and stability at high temperatures. Typically, these angles boast a tensile strength of 620–750 MPa, yield strength of 275–310 MPa, and an elongation of 30–40%, ensuring reliable mechanical performance. Stainless Steel 321H Angles maintain their structural integrity and dimensional stability even when exposed to high temperatures for extended periods, making them ideal for industrial, chemical, and high-temperature engineering applications.

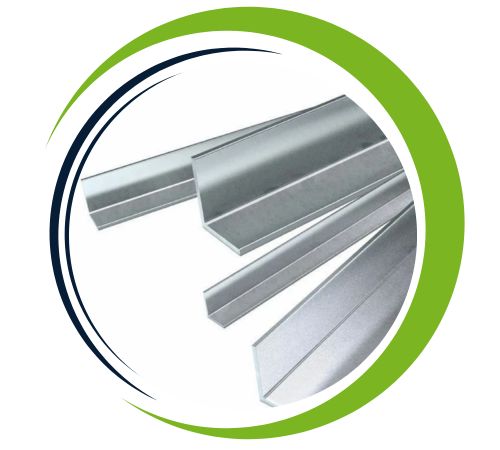

Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| % | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| 321 | min:17.0 max:19.0 | min: 9.0 max:12.0 | max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| 321H | min:17.0 max:19.0 | min: 9.0 max:12.0 | min:0.04 max:0.10 | min:18.0 max:20.0 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation – % in 50 mm (min.) | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 321/321H | 75 | 30 | 40 | 217 |
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
| 0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 321H angle offers excellent advantages due to its high carbon content, especially increased resistance to creep and stress rupture at high temperatures Its titanium stabilizer prevents carbide precipitation, improving corrosion resistance at high temperatures . . . . This surface provides outstanding strength, durability and oxidation resistance up to 870°C, making it ideal for heat exchangers, chemical processing and furnace components And power generation more, its ease of manufacture and ability to withstand thermal cycling without losing strength make it the preferred choice for demanding industrial applications. It also retains technology.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
These angles are widely utilized in industries that demand high strength, heat resistance, and corrosion protection. Common uses include structural frameworks, pressure vessels, heat exchangers, boiler components, and chemical processing equipment. Their ability to endure thermal stress makes them suitable for furnace parts, exhaust systems, and high-temperature machinery.
