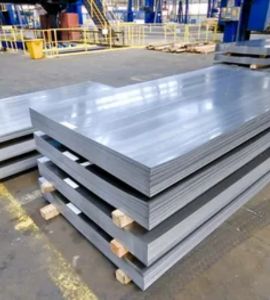

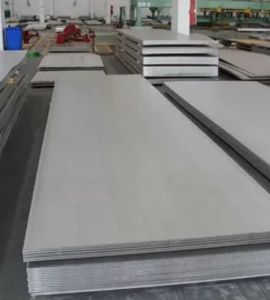

Smith Fittings, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Stainless Steel 316Ti Sheets and Plates**. These products are celebrated for their exceptional resistance to corrosion, stability at high temperatures, and overall durability. Crafted from titanium-stabilized austenitic stainless steel, they effectively prevent intergranular corrosion and deliver outstanding mechanical performance even in extreme conditions. At Smith Fittings, precision manufacturing goes hand in hand with rigorous quality control, ensuring that their 316Ti sheets and plates meet international standards. Perfect for demanding industrial, marine, and structural applications, these offerings promise long-lasting reliability, structural integrity, and resilience against harsh chemicals and chloride-rich environments.
The **Stainless Steel 316Ti Sheets and Plates** are composed of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium, which boosts their stability against sensitization and corrosion at elevated temperatures. They boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of roughly 8.0 g/cm³ and a melting point between 1375–1400°C, these sheets and plates provide excellent toughness, formability, and weldability, ensuring they maintain their mechanical integrity in both high-temperature and corrosive environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

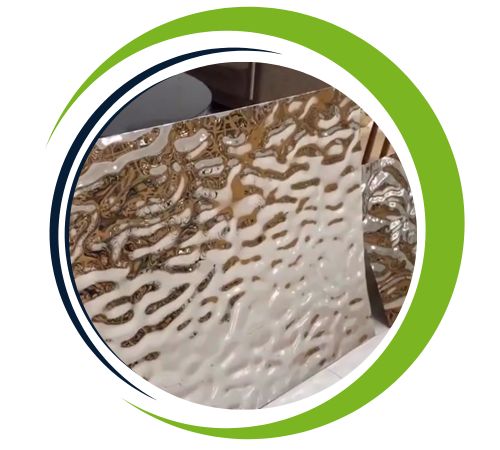

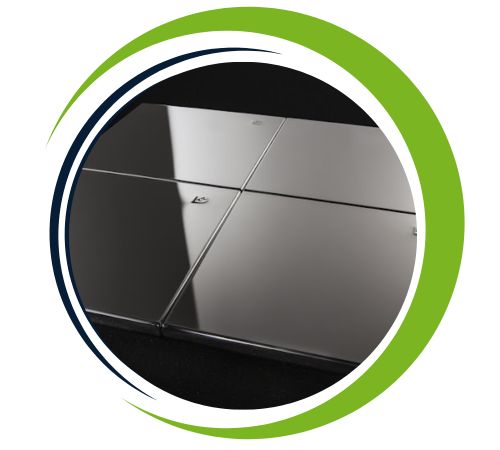

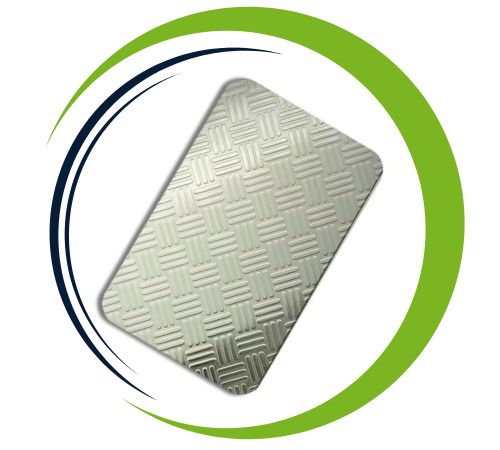

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

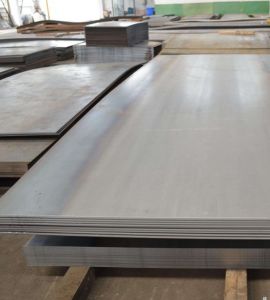

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

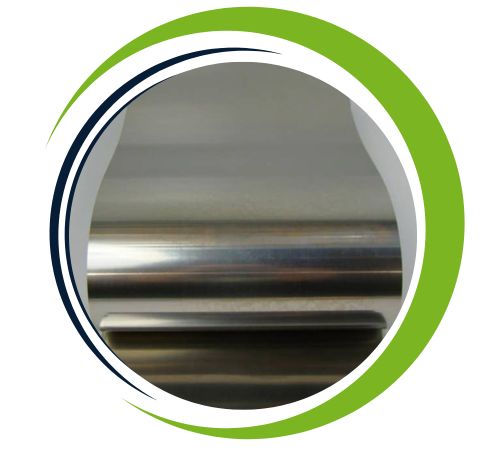

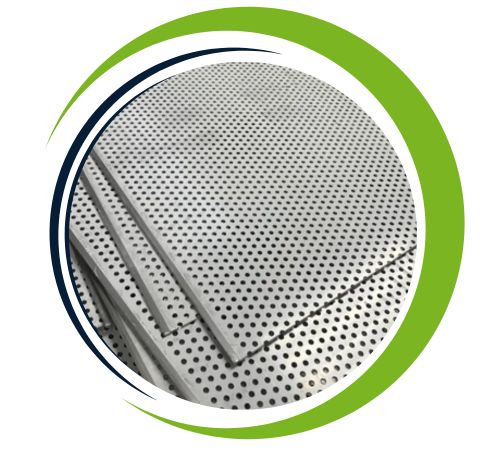

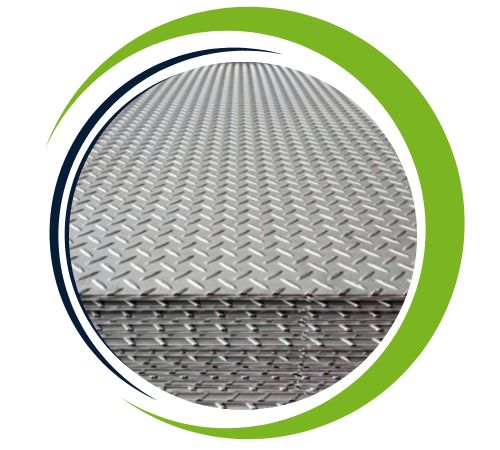

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316Ti sheets and plates offer exceptional advantages, including resistance to pitting, crack corrosion and excellent intergranular corrosion even at elevated temperatures The addition of titanium ensures stability against carbide precipitation, making it more difficult in rough environments. These sheets are strong, have excellent high-temperature strength and mechanical performance, making them ideal for complex applications. They resist oxidation and scaling, providing durability in marine, chemical and industrial applications. In addition, they are easy to manufacture, weld and maintain, providing cost effective and reliable for structural and process equipment applications.
These **Stainless Steel 316Ti Sheets and Plates** find extensive use in industries that demand high corrosion resistance and heat stability. They are particularly well-suited for chemical processing equipment, heat exchangers, pressure vessels, furnace components, and marine structures. Moreover, they are utilized in power generation, petrochemical plants, and food or pharmaceutical processing machinery due to their resistance to chloride-induced corrosion and scaling. Their unique blend of strength, durability, and reliability makes them ideal for structural, industrial, and high-performance engineering applications in challenging environments.
