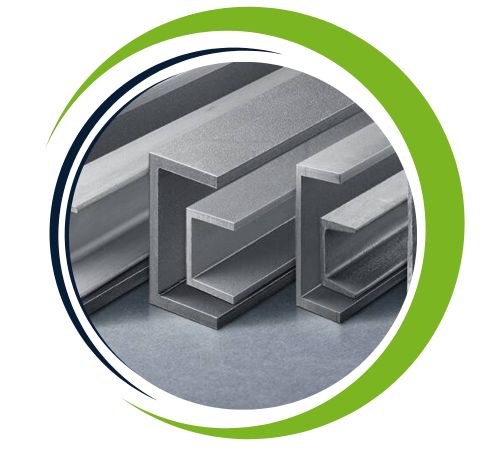

Smith Fittings, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Stainless Steel 316L Channels**. These channels are celebrated for their exceptional corrosion resistance, strength, and durability. Crafted from low-carbon austenitic stainless steel, they offer improved weldability and reduce carbide precipitation during welding. Smith Fittings is committed to precision engineering and rigorous quality control, ensuring that their 316L channels perform reliably in even the toughest environments. Their products find extensive use in industrial, marine, and structural applications, providing long-lasting reliability and resistance to harsh chemical, saline, and atmospheric conditions across various fabrication and construction projects.
**Stainless Steel 316L Channel** is primarily composed of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), with a lower carbon content that boosts corrosion resistance, particularly against intergranular attack. It boasts a tensile strength of around 485 MPa, a yield strength of 170 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting point between 1370–1400°C, this alloy retains excellent toughness and ductility, even at cryogenic temperatures, while also providing superior formability and weldability.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 316L channels offer numerous advantages, particularly their outstanding corrosion resistance, especially in chloride and acidic environments. The low carbon content enhances weldability, making it ideal for welding in various industrial applications. These channels also provide excellent strength and durability, maintaining performance in high-temperature environments. Their resistance to pitting and crevice corrosion ensures long-lasting use in harsh conditions. Additionally, Stainless Steel 316L’s high resistance to stress corrosion cracking makes it suitable for critical applications in marine, chemical, food processing, and pharmaceutical industries, ensuring minimal maintenance and reliable performance.
Yes, we offer custom sizes for Stainless Steel 316L Channel to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
**Stainless Steel 316L Channels** are commonly utilized in industries that demand high corrosion resistance and structural integrity. Typical applications include equipment for chemical and petrochemical processing, marine structures, food processing facilities, pharmaceutical plants, and architectural frameworks. They are particularly well-suited for heat exchangers, pressure vessels, and offshore platforms due to their outstanding resistance to chloride-induced corrosion. The combination of strength, durability, and a smooth surface finish makes them ideal for both structural and decorative uses in challenging industrial and coastal environments.
