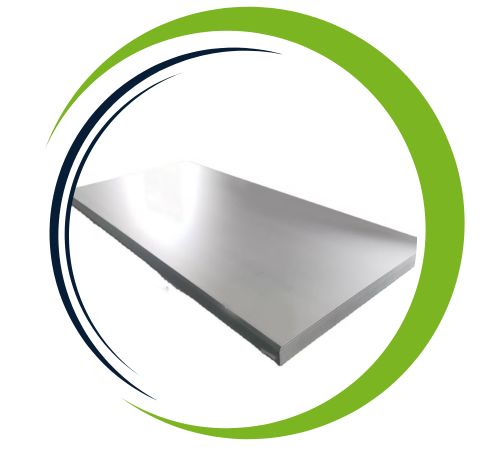

Smith Fittings, a reputable manufacturer and supplier located in Canberra, Australia, is all about delivering top-notch Stainless Steel 201 Sheets and Plates. This material is celebrated for its durability, resistance to corrosion, and cost-effectiveness, making it a fantastic alternative to traditional chromium-nickel stainless steels. At Smith Fittings, you can expect precision-engineered sheets and plates that are perfect for a variety of uses, whether industrial, architectural, or decorative. With a commitment to consistent quality, precise dimensions, and timely delivery, the company serves a wide range of industries, ensuring that every product meets international standards and performs reliably in different environmental conditions.
Stainless Steel 201 is an austenitic alloy that includes 16–18% Chromium, 3.5–5.5% Nickel, 5.5–7.5% Manganese, up to 1% Silicon, and 0.15% Carbon. This unique blend boosts its strength and work-hardening abilities while keeping corrosion resistance intact. The material boasts a tensile strength of about 515–750 MPa, a yield strength of roughly 275 MPa, and an elongation of 40%, making it both robust and easy to shape. Its impressive hardness and wear resistance make it ideal for structural and decorative applications where both aesthetics and strength are crucial.
| Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L |
| Thickness | 0.3mm – 100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

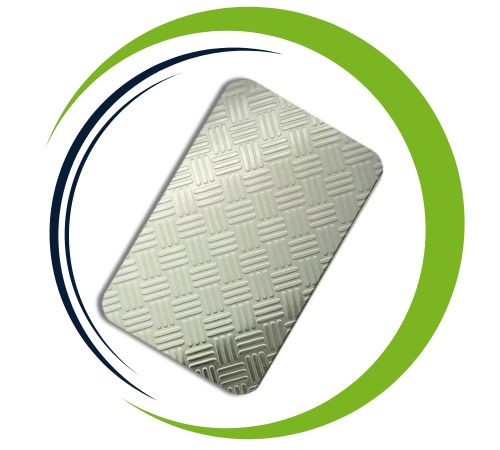

| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Type of Material | STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |

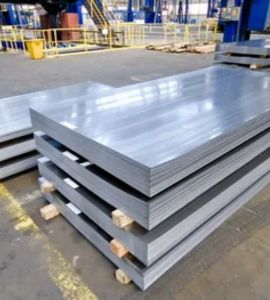

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |

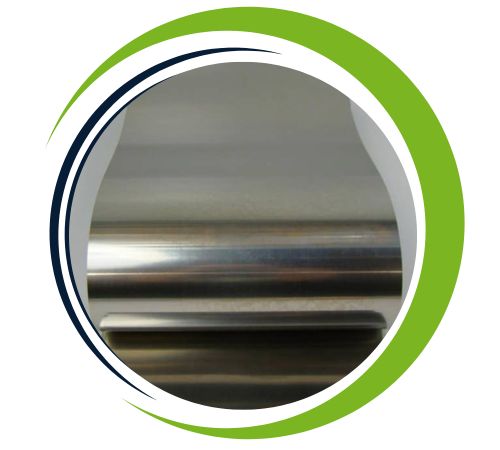

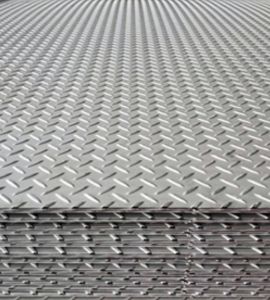

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Sheets & Plates, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Properties | Metric | Imperial |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
| STANDARD | UNS | JIS | WERKSTOFF NR. | AFNOR | BS | GOST | EN |
| SS 201 | S20100 | SUS 201 | 1.4372 | – | – | – | – |
| Properties | Metric | Imperial |
| Density | 7.86 g/cm3 | 0.284 lb/in³ |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 201 sheets and plates have many advantages, including excellent corrosion resistance, making them ideal for harsh environments. In Nukel products they are a cost-effective alternative to other stainless steel products, while maintaining excellent strength and durability. They are easy to manufacture, weld and fabricate, making them versatile in industries such as automotive, construction and kitchen appliances. Additionally, stainless steel 201 is highly resistant to oxidation and rusting, providing long-lasting, maintenance-free durability. Its elegant finish makes it suitable for both functional and aesthetic purposes.

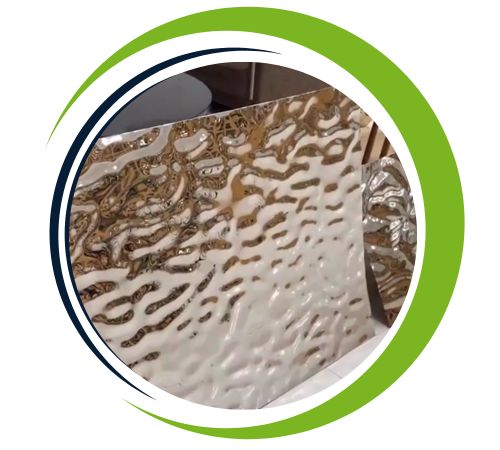

Stainless Steel 201 Sheets and Plates are popular across various industries thanks to their outstanding strength-to-weight ratio and resistance to corrosion. You’ll find them in kitchen equipment, restaurant appliances, sinks, automotive trim, architectural paneling, railway coaches, utensils, and decorative elements. They’re also used in chemical containers, transport systems, and structural frameworks that require both durability and visual appeal. With their formability and smooth, polishable surface, they’re perfect for both indoor and outdoor applications. Smith Fittings provides these sheets and plates to meet the high demands of modern manufacturing and infrastructure projects.
