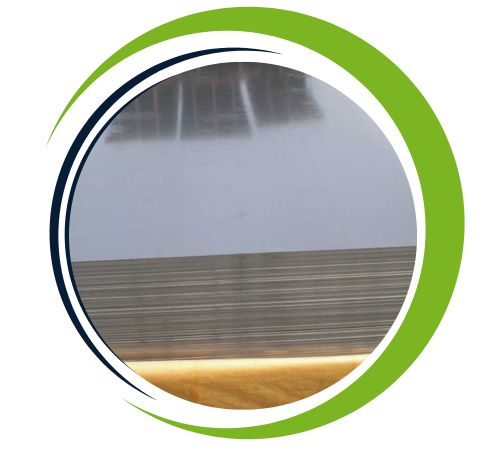

Smith Fittings, a reputable manufacturer and supplier located in Canberra, Australia, specializes in high-performance **Monel K500 Sheets and Plates**. These products are designed to offer outstanding corrosion resistance, impressive strength, and durability, even in the toughest environments. Crafted to adhere to strict international standards, these nickel-copper alloy sheets and plates ensure precise thickness, a uniform surface finish, and dependable mechanical performance. With a commitment to advanced manufacturing techniques and rigorous quality control, Smith Fittings consistently delivers top-notch products. They cater to various industries, including marine, chemical processing, aerospace, and oil and gas, providing Monel K500 Sheets and Plates that are perfect for applications demanding structural integrity, corrosion resistance, and reliability at high temperatures.
**Monel K500 Sheets and Plates** primarily consist of nickel (about 63–70%) and copper (around 28–34%), with small amounts of aluminum and titanium added for age-hardening. They boast a tensile strength between 860–1100 MPa, a yield strength of 345–690 MPa, and remarkable ductility. These sheets and plates excel in resisting corrosion from seawater, acids, and alkalis, while also maintaining high mechanical stability and toughness at elevated temperatures. Their unique blend of strength, hardness, and durability makes Monel K500 Sheets and Plates ideal for demanding structural and industrial applications.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

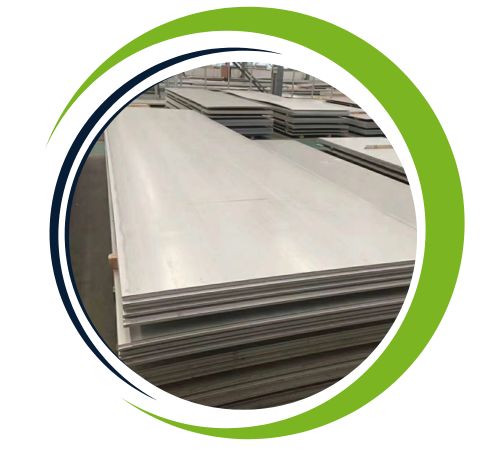

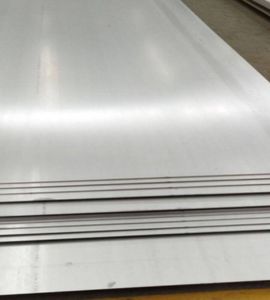

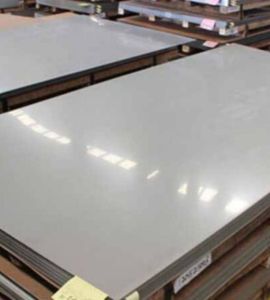

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel K500 Sheets and Plates offer several advantages, including exceptional corrosion resistance, particularly in seawater, alkaline and acidic environments. The addition of titanium and aluminum enhances the alloy’s strength, hardness, and resistance to stress corrosion cracking. Monel K500 also exhibits excellent fatigue and thermal-fatigue strength, making it ideal for high-stress applications. It provides excellent performance at both high and low temperatures, and its good weldability and formability make it suitable for complex shapes. These attributes make Monel K500 ideal for demanding industries such as aerospace, marine and chemical processing.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
**Monel K500 Sheets and Plates** find extensive use in industries that require high strength, corrosion resistance, and thermal stability. They are commonly utilized in **marine components, pump shafts, valves, and fasteners**. In the **chemical processing and oil & gas sectors**, they serve in **reactors, piping systems, and heat exchangers**. Their exceptional resistance to seawater, acids, and alkalis also makes them suitable for **aerospace parts, industrial machinery, and high-performance engineering applications**. Monel K500 Sheets and Plates guarantee long-lasting durability, dimensional stability, and reliability.
