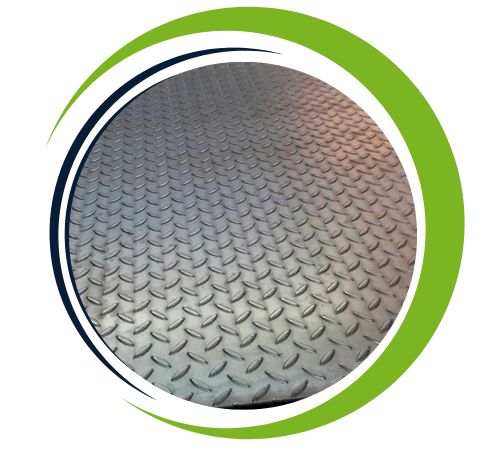

Smith Fittings, a reputable manufacturer and supplier located in Canberra, Australia, proudly offers top-notch **Monel 400 Sheets and Plates** that are well-known for their exceptional resistance to corrosion, impressive strength, and long-lasting durability. Crafted with precision using cutting-edge technology, these sheets and plates adhere to international quality standards, making them perfect for challenging environments. Smith Fittings guarantees outstanding dimensional accuracy, a superb surface finish, and reliable mechanical performance, which makes Monel 400 Sheets and Plates ideal for a variety of industrial applications, including marine, chemical processing, and oil & gas sectors where dependability and corrosion resistance are essential.
**Monel 400 Sheets and Plates** are primarily made up of about 67% nickel and 30% copper, along with trace amounts of iron, manganese, carbon, and silicon. They boast impressive mechanical properties, featuring a tensile strength ranging from approximately 480 to 620 MPa and a yield strength between 170 and 345 MPa, along with remarkable toughness and ductility. These plates retain their strength and corrosion resistance even in acidic and alkaline environments, delivering outstanding performance in marine and chemical applications while effectively handling high temperatures and pressures.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel 400 Sheets and Plates offer several key advantages including exceptional corrosion resistance, particularly in seawater, acids, and alkaline environments. They exhibit excellent strength and durability at both high and low temperatures, making them ideal for demanding industrial applications. With good weldability, formability and resistance to stress corrosion cracking. Monel 400 is versatile for various industries, including marine, chemical, and aerospace. Its resistance to oxidation and wear ensures long-term performance, reducing maintenance and replacement costs. Overall Monel 400 provides reliability, longevity, and high performance in harsh environments.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
**Monel 400 Sheets and Plates** find extensive use in industries that require strength, corrosion resistance, and durability. They are commonly utilized in **marine engineering, heat exchangers, chemical processing equipment, and oil & gas piping systems**. Their ability to resist seawater and acids makes them perfect for **pump shafts, valves, condensers, and distillation towers**. Additionally, Monel 400 Sheets and Plates are employed in **aerospace, power generation, and desalination plants**, where they ensure reliable performance under tough operating conditions, providing a long service life and structural integrity.
