Smith Fittings, a reputable manufacturer and supplier located in Canberra, Australia, specializes in high-quality **Monel 400 Circles** that are designed to withstand tough conditions with exceptional corrosion resistance, mechanical strength, and durability, especially in industrial and marine settings. Crafted to adhere to strict international standards, these nickel-copper alloy circles boast precise dimensions, a uniform surface finish, and dependable mechanical performance. By blending cutting-edge manufacturing techniques with thorough quality control, Smith Fittings consistently delivers top-notch, high-performance products. The company caters to various industries, including chemical processing, marine, aerospace, and oil and gas, providing Monel 400 Circles that are perfect for applications needing resistance to seawater, acids, alkalis, and oxidation, ensuring long-lasting reliability and structural integrity.
**Monel 400 Circles** primarily consist of nickel (about 63–70%) and copper (around 28–34%), along with trace amounts of iron, manganese, and carbon. They showcase impressive tensile strength ranging from 550–750 MPa, yield strength between 200–450 MPa, and remarkable ductility. These circles excel in resisting corrosion from seawater, acids, and alkalis while maintaining their mechanical stability even at high temperatures. Their unique blend of strength, durability, and formability makes Monel 400 Circles ideal for critical applications in industrial, marine, and high-performance sectors.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

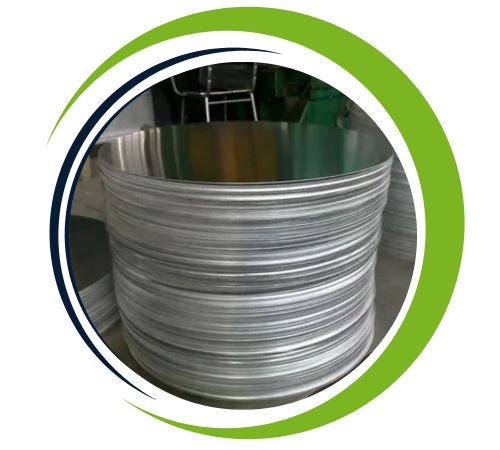

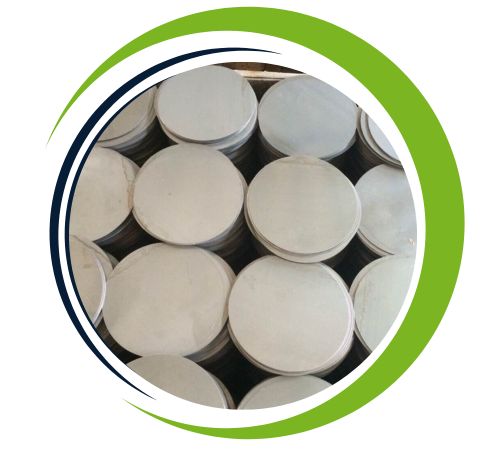

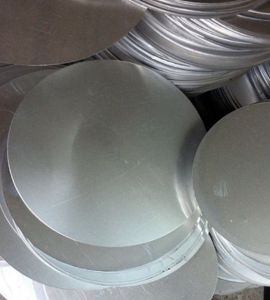

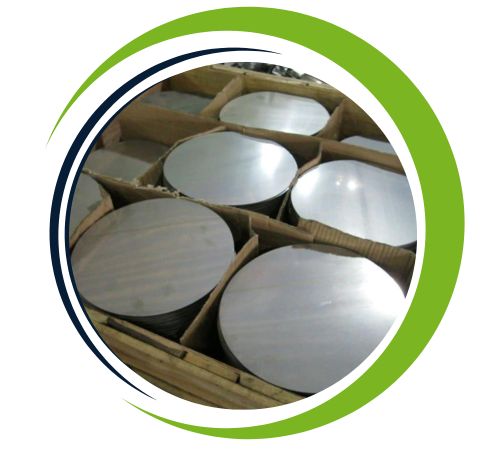

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Property | Value |
|---|---|
| Tensile Strength | 70-95 ksi (485-655 MPa) |
| Yield Strength | 30 ksi (205 MPa) min |
| Elongation | 35% min in 2 inches (50 mm) |
| Hardness | Rockwell B70 max |
| Modulus of Elasticity | 28 x 106 psi (193 GPa) |
| Poisson’s Ratio | 0.31 |
UNS N04400 Circle offers several advantages, including outstanding corrosion resistance in marine and chemical environments, making it ideal for seawater applications. Its high strength and durability ensure long-lasting performance under stress and high temperatures. The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking makes it highly reliable in harsh conditions. Monel 400 is also known for its excellent thermal conductivity and machinability, making it easy to fabricate. Its versatility extends across a variety of industries, including marine, chemical processing, and aerospace, ensuring it meets demanding requirements while offering superior performance.
Yes, we offer custom sizes for Monel 400 Circle to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Outer Diameter (OD) (mm) | Thickness (mm) | Size (mm) | Approximate Weight (kg) |
|---|---|---|---|
| 100 | 5 | 100 x 5 | 3.92 |
| 150 | 10 | 150 x 10 | 17.66 |
| 200 | 15 | 200 x 15 | 39.26 |
| 250 | 20 | 250 x 20 | 68.83 |
| 300 | 25 | 300 x 25 | 107.36 |
| 350 | 30 | 350 x 30 | 154.87 |
| 400 | 35 | 400 x 35 | 211.35 |
| 450 | 40 | 450 x 40 | 276.80 |
| 500 | 50 | 500 x 50 | 392.70 |
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,455°C (2,651°F) |
| Electrical Resistivity | 0.49 µΩ·cm |
| Thermal Conductivity | 35.4 W/m·K |
| Thermal Expansion (25-100°C) | 13.4 µm/m·K |
| Specific Heat (at 25°C) | 0.385 J/g·K |
| Young’s Modulus | 193 GPa (28 x 10⁶ psi) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
**Monel 400 Circles** find extensive use in industries that demand high corrosion resistance, mechanical strength, and thermal stability. They are commonly utilized in **marine components, pump shafts, valves, and fasteners**. In the **chemical processing and oil & gas industries**, they serve in **piping systems, heat exchangers, and structural components**. Their outstanding resistance to seawater, acids, and alkalis also makes them suitable for **industrial machinery, aerospace components, and high-performance engineering applications**. Monel 400 Circles guarantee long-lasting durability, dimensional stability, and reliable mechanical performance.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
