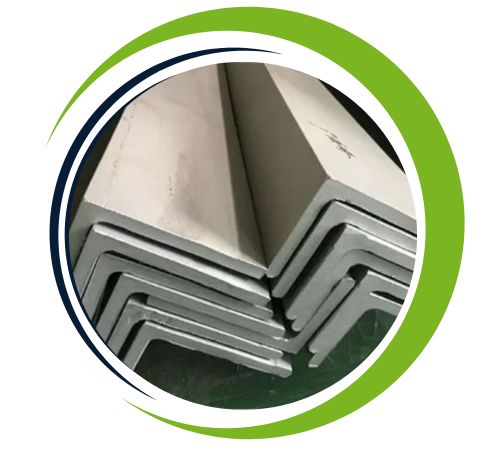

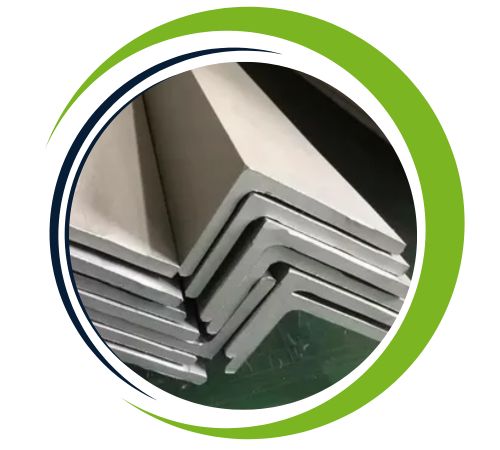

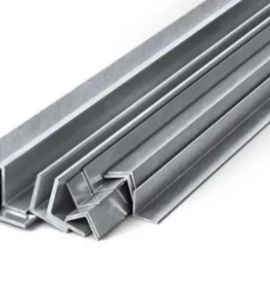

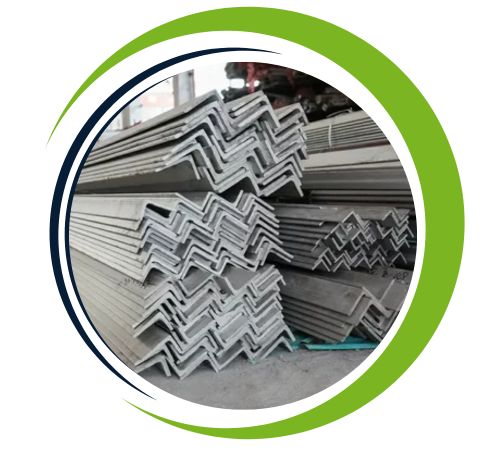

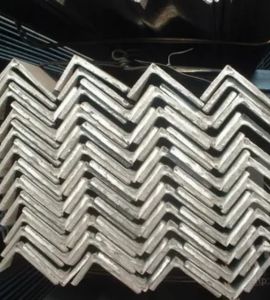

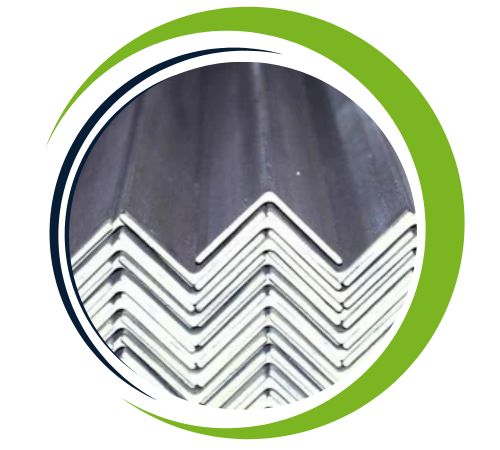

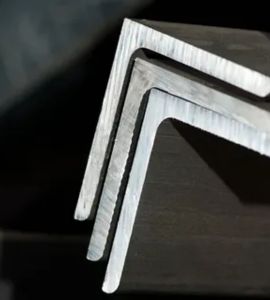

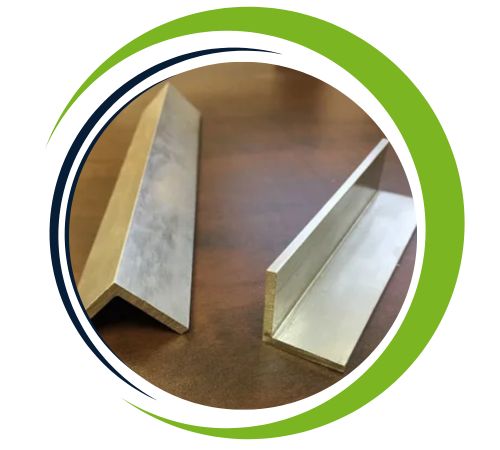

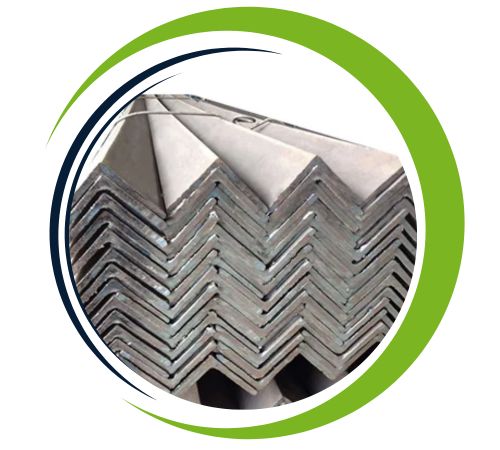

Smith Fittings, a top-notch manufacturer and supplier located in Canberra, Australia, proudly presents its premium-quality **Incoloy 800/800H/800HT Angles**. These angles are celebrated for their outstanding high-temperature strength, resistance to oxidation, and durability against corrosion. Designed to meet the rigorous demands of industrial, chemical, and power generation sectors, they deliver dependable performance even under extreme thermal and mechanical pressures. Smith Fittings guarantees precision in manufacturing, ensuring consistent dimensions and a superior surface finish, all while adhering to international quality standards. Renowned for their durability and long-lasting performance, Incoloy 800/800H/800HT Angles from Smith Fittings are perfect for structural components and critical applications in furnaces, heat exchangers, boilers, and other high-temperature settings.
The **Incoloy 800/800H/800HT Angles** are nickel-iron-chromium alloys made up of **Nickel (30–35%)**, **Iron (39–45%)**, and **Chromium (19–23%)**, along with small amounts of **Carbon, Titanium, and Aluminum**. The 800H and 800HT versions are specially designed to enhance high-temperature strength through controlled carbon content and heat treatment. This material boasts a **tensile strength of 485–620 MPa**, a **yield strength of 205–275 MPa**, and impressive elongation, which translates to excellent ductility, toughness, and thermal stability in high-temperature and corrosive environments.
| Standard | ASTM B408, ASME SB408 |
|---|---|
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32 |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Josh Sheets and Plates based in Canberra, Australia, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800, 800H, and 800HT offer several advantages, including exceptional resistance to oxidation, carburization, and sulfidation at high temperatures. They maintain excellent mechanical properties such as tensile strength and creep resistance, even under extreme heat conditions. These alloys are highly durable, ensuring long-term performance in high-temperature environments like chemical processing, furnace applications, and power plants. Incoloy 800H and 800HT, with controlled carbon content and optimized alloying, provide enhanced creep rupture strength and improved resistance to thermal degradation. Overall, they are reliable choices for industries requiring robust, heat-resistant materials.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy 800 / 800H / 800HT Angle to meet specific project needs. Our team at Josh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
**Incoloy 800/800H/800HT Angles** find their place in various industries that demand high-temperature resistance and corrosion protection. Common applications include **furnace structures, heat exchangers, boiler frames, chemical processing equipment, and nuclear power systems**. They are also utilized in **petrochemical, aerospace, and industrial manufacturing**, where structural components need to endure oxidizing and reducing atmospheres at elevated temperatures. With their remarkable weldability, formability, and long-term durability, Incoloy 800/800H/800HT Angles from Smith Fittings are the go-to choice for crafting high-performance structural components and assemblies that are in high demand.
