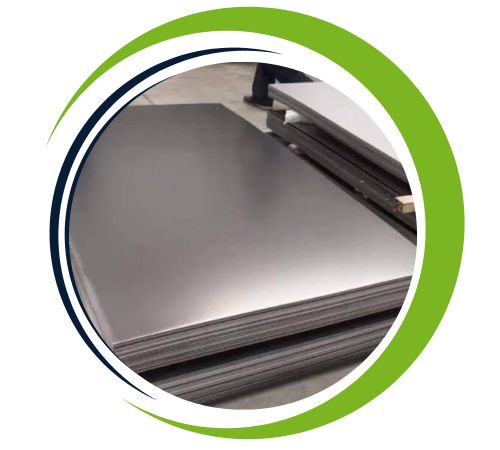

Smith Fittings stands out as a top-notch manufacturer and supplier of **Hastelloy B3 Sheets and Plates** right from **Canberra, Australia**. We take pride in delivering high-quality nickel-molybdenum alloy products that are well-known for their remarkable corrosion resistance, impressive strength, and long-lasting durability. Our Hastelloy B3 Sheets and Plates are crafted with precision, utilizing advanced metallurgical techniques and rigorous quality control to guarantee consistent thickness, a smooth surface finish, and dependable mechanical performance. These sheets and plates are specifically designed to thrive in highly corrosive and demanding industrial settings, making them perfect for applications in chemical, marine, and process engineering. At Smith Fittings, we cater to various industries, including chemical processing, petrochemical, marine engineering, and industrial manufacturing, providing reliable Hastelloy solutions.
**Hastelloy B3 Sheets and Plates** are primarily made up of **nickel, with substantial amounts of molybdenum, iron, and trace amounts of manganese**, which gives them outstanding resistance to **reducing acids, pitting, crevice corrosion, and stress corrosion cracking**. They exhibit **high tensile strength, excellent ductility, and thermal stability**, making them ideal for harsh chemical and high-temperature environments.
Specifications :ASTM B333 / ASME SB333
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy B3 | 0.01 max | 3.0 max | 0.10 max | 0.50 max | 3.0 max | 65.0 min | 1.5 | 1.5 | 28.5 | 0.2 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.22 g/cm3 | 1418°C (2585°F) | 1000 – 2000 N/mm² , 145 – 290 ksi | 62 – 183 Ksi, 425 – 1260 MPa | 57 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B3 | 2.4600 | N10675 |
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.600″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy B3 sheets and plates offer exceptional advantages, especially in harsh, corrosive environments. They provide outstanding resistance to hydrochloric acid, sulfuric acid, and other aggressive chemicals ensuring reliability in chemical processing and waste treatment applications. With excellent resistance to pitting, crevice corrosion, and stress corrosion cracking they ensure long-term durability. The materials high strength and ease of fabrication further enhance its suitability for complex designs and welding. Hastelloy B3 superior performance in reducing conditions, combined with its ability to maintain structural integrity under extreme conditions, makes it a preferred choice for critical industrial applications.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
You’ll find **Hastelloy B3 Sheets and Plates** commonly used in **chemical reactors, heat exchangers, flanges, and piping systems** that come into contact with highly corrosive reducing media. In **industrial and fabrication settings**, they are utilized for **acid processing equipment, marine structures, and high-performance industrial components**, ensuring durability, reliability, and long-term performance. Their unique blend of **mechanical strength, corrosion resistance, and versatility** makes Hastelloy B3 Sheets and Plates the go-to choice for challenging chemical, marine, and industrial applications.
